    XGN49 40.5kV SF6 Gas Insulated Metal-clad Switchgear for Indoor Power Distribution

    XGN49 SF6 Gas Insulated Switchgear Indoor Gas Insulation Metal-clad Switchgear


    General Introduction:

    XGN49-(12/24)40.5 series indoor gas-insulated metal-clad switchgear(hereinafter called "C-GIS panel") is a switchgear which uses a spring-operated vacuum circuit breaker,electrically operated three station isolation /grounding switch,transformer,lightning arrester as the main components,and completely seals all HV conductors in the metal-clad enclosure with SF6 gas as the insulating medium.

    The product has features of flexible combinations,great safety,complete interlocking logic as well as extendibility,miniaturization and free for maintenance.So that it was commonly used in infrastructure construction for power station,power substation,movable transformer pack,rail traffic,buildings that have the 35kV or below nominal voltage.Especially for some sever environment like high altitude,heavy pollution and high humidity.

    Installation and Test

    The installation foundation construction of C-GIS switchgear shall comply with the relevant provisions in the DL/T5190 technical code for construction and acceptance of electric power construction,and shall be constructed according to the appearance and installation foundation dimensions of the switchgear.The installation foundation drawing and installation splicing diagram of the switchgear are shown below.(Note:If the secondary cables enter the panel from the top,it can be free from equipping the secondary cable hole and cable channel.


    Parameters Table


    ItemUnitParameter
    Rated voltagekV40.5
    Rated currentA5~2000
    Rated frequencyHz50
    Rated power frequency withstand voltage (1min)Phase to phase, Phase to earthkV95
    Insulation Distance110
    Rated Lightning impulse withstand voltagePhase to phase, Phase to earthkV185
    Insulation Distance215
    1min power frequency withstand voltage of Auxiliary control circuitV2000
    Rated short-circuit breaking current (effective value)kA20 25 31.5
    Rated short-circuit making current(peak time)kA50 63 80
    Rated short time withstand currentkA20 25 31.5
    Rated peak withstand currentkA50 63 80
    Rated short-circuit keeping times4
    Degrees of protectionIP67/IP4X
    Every phase main return circuit resistanceμΩ≤250
    Rated SF6 gas pressure (20°C)Mpa0.05
    Min SF6 gas pressure (20°C)Mpa0.02
    Annual SF6 gas loss rate%≤1
    Rated voltage of auxiliary control circuitVDC110/220,AC220
    Dimensions (Width×Depth×Height)mm

    (600~1200) ×1400×2650


    Air box Details

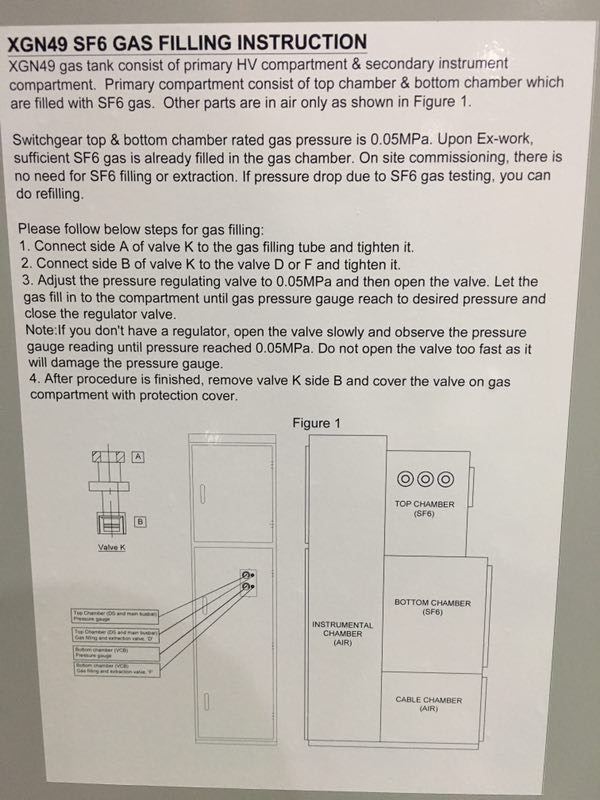

    SF6 Gas Filling Instruction
