    XGTD7-(12/24)40.5 Indoor Gas Insulation Mental-clad Switchgear

    Ask Lasest Price
    Brand Name : Tianan Electric
    Model Number : XGTD7-(12/24)40.5
    Certification : IEC62271& GB 3906
    Price : Pending
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 3000sets per year
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    XGTD7-(12/24)40.5 Indoor Gas Insulation Mental-clad Switchgear

    XGTD7-(12/24)40.5 Indoor Gas Insulation Mental-clad Switchgear


    General introduction

    XGN (XGTD7)-(12/24) 40.5 series indoor gas-insulated metal-clad switchgear (hereinafter called "C-GIS cabinet") is a switchgear which uses a spring-operated vacuum circuit breaker, electrically operated three station isolation / earthing switch,CT/PT lightning arrester as the main components, and completely seals all HV conductors in the metal-clad enclosure with gas as the insulating medium.

    The product has features of flexible combinations, great safety, complete interlocking logic as well as extensibility, miniaturization and free for maintenance. So that it was commonly used in infrastructure construction for power station, power substation, movable transformer pack, buildings that have the 35kV or below nominal voltage. Especially for some sever environment like high altitude, heavy pollution and high humidity.

    The product quality assurance is based on researching, developing designing and producing required by quality system and continues to improve. So it is completely complying with the newest version or revised version of following standard, but not limited to them.GB3906 3.6 ~ 40.5 kVAC metal-enclosed switchgear and control equipment

    GB/T 11022 Common technical requirements for HV switchgear and control equipment standardsDL/T 404 3.6 ~ 40.5 kVAC metal-enclosed switchgear and control equipment

    GB1984 HVAC circuit breaker

    GB 1985 HVAC isolation switch and earthing switch

    GB 11032 AC gapless metal oxides surge arrester

    IEC62271-200 AC metal-enclosed switchgear and control equipment with rated voltage above 1kV, 52kV and below

    EN 50181 Plug-in bushing for equipment with rated voltage of 1kV~52kV and current of 250A~2500A

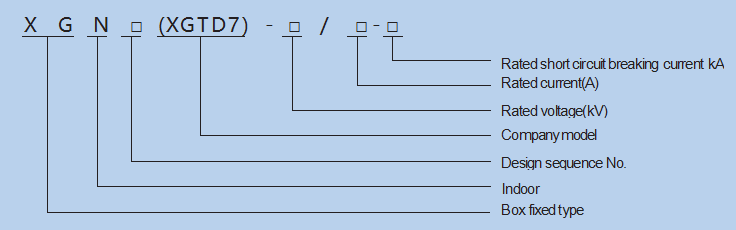

    Type and designation


    Technical parameter
