    Metal Clad High Voltage Switchgear 40.5kv 24kv Gas Insulated Cubicle For Indoor

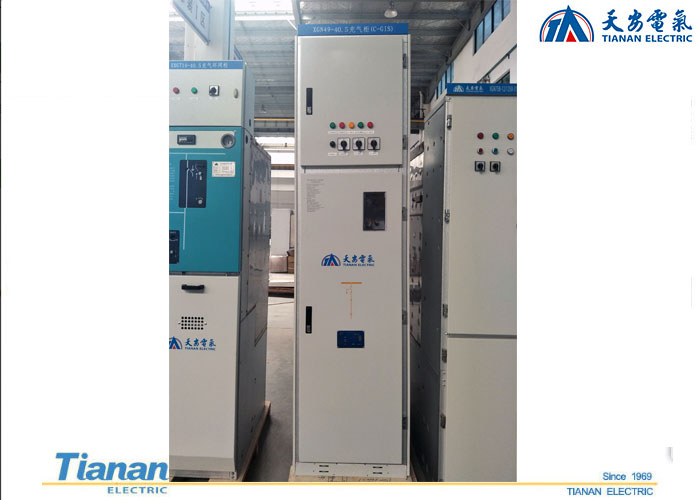

    Indoor Gas Insulated cubicle Metal - Clad Switchgear C - GIS

    Overview

    XGN49-40.5 Indoor Gas Insulating Metal-clad Switchgear (hereinafter referred to as “C-GIS”) is a high technology product which is researched, developed and manufactured on the basis of technology introduction of China Power Industry Federation Longyuan Power Research Institute.


    Service ambient condition:
    Air temperature: Max: +40, Min: -25 (average is not more than 35 in 24 hours)
    Altitude above sea level: <= 3000m
    Air humidity: The average relative humidity measured in 24 hours is not more than 95%, the average relative humidity per month is not more than 90%, average water vapor pressure measured in 24 hours is not more than 2.2kPa, average water vapor pressure per month is not more than 1.8 kPa.
    Without frequent heavy vibration
    The range of induction electromagnetic interference of secondary system is not more than 1.6kV
    Conditions excluded from above are in need of negotiating with the manufacturer.


    Parameters

    ItemUnitParameter
    Rated voltagekV40.5
    Rated currentA5~1250
    Rated frequencyHz50
    Rated power frequency withstand voltage (1min)Phase to phase, Phase to earthkV95
    Insulation Distance110
    Rated Lightning impulse withstand voltagePhase to phase, Phase to earthkV185
    Insulation Distance215
    1min power frequency withstand voltage of Auxiliary control circuitV2000
    Rated short-circuit breaking current (effective value)kA20 25 31.5
    Rated short-circuit making current(peak time)kA50 63 80
    Rated short time withstand currentkA20 25 31.5
    Rated peak withstand currentkA50 63 80
    Rated short-circuit keeping times4
    Degrees of protectionIP67/IP4X
    Every phase main return circuit resistanceμΩ≤250
    Rated SF6 gas pressure (20°C)Mpa0.05
    Min SF6 gas pressure (20°C)Mpa0.02
    Annual SF6 gas loss rate%≤1
    Rated voltage of auxiliary control circuitVDC110/220,AC220
    Dimensions (Width×Depth×Height)mm(600~1200) ×1400×2650
