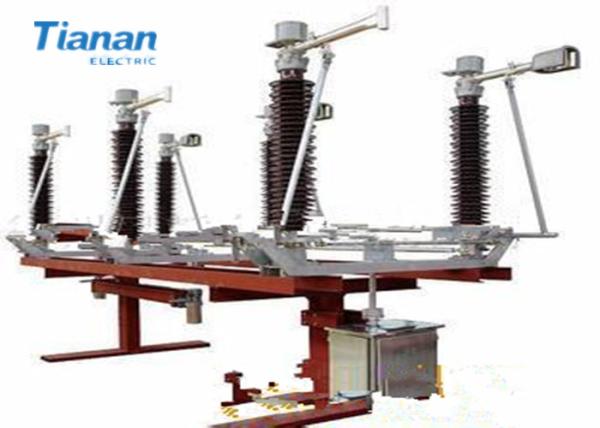

12 KV Outdoor High Voltage Disconnect Switch 2 Years Warranty

    Buy cheap 12 KV Outdoor High Voltage Disconnect Switch 2 Years Warranty from wholesalers

    Buy cheap 12 KV Outdoor High Voltage Disconnect Switch 2 Years Warranty from wholesalers
    • Buy cheap 12 KV Outdoor High Voltage Disconnect Switch 2 Years Warranty from wholesalers

    12 KV Outdoor High Voltage Disconnect Switch 2 Years Warranty

    Ask Lasest Price
    Brand Name : Tianan Electric
    Model Number : GW4
    Certification : VDE ISO9001-2000 UL
    Price : Pending
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 17500 PCS/year
    Delivery Time : 40 work days
    • Product Details
    • Company Profile

    12 KV Outdoor High Voltage Disconnect Switch 2 Years Warranty

    High Voltage outdoor Disconnect Switch


    AC High Voltage Outdoor Disconnect Switch
    NINGBO TIANAN (GROUP) CO., LTD.

    Specifications


    1. Can used in three-phase AC 50Hz ,24kVelectric power system ,
    2. Can used in the equipment of mining and
    industry ,enterprise, power plants and substations for protect and control .
    3. Can used in KYN28A-24(GZS) switchgear
    cabinet and XGN fixed type switchgear cabinet.
    4. Has Advanced vacuum arcing chamber.
    5. insulation cylinder made by APG new technology
    6. Confirmed to GB1984-2003, GB/T11022-1999 ,IEC62271-100 , DL/403

    Using Environment

    1. The temperature in surrounding air: Max:+40°C~Min -15°C,The average:<=+35°C
    2. Humidity: The average of relative temperature within 24hours is <=95%, The average of Water
    vapour pressure within 24hours is <=2.2kpa.
    3. Here is no serious pollution from dust, smoke,corrosive or combustible gas,
    vapor or salt spray, and so on.



    General

    FN12 Series AC HV Load Switch is a kind of three phase high voltage switch apparatus, suitable for
    12kV rated voltage, 50Hz rated frequency alternative current, It is mainly used in downtown power distribution station and industrial electric equipment of three phase ring main unit electricity circle or terminal power supply, for breaking and closing short circuit current.

    Service Condition

    1. The altitude does not exceed 1000m.
    2. The ambient air temperature: Highest:+40oC, the lowest:-10oC
    3. The relatire Humidity of air not bigger 90% (around the 25oC envirenment)
    4. The working situation have no conductivity dust.
    5. The working situation have no corrosive gas of affect insulation and destroy metal.
    6. The working situation without violent vibration and striking.
    7. The working situation have no explosive danger and fire.

    Technical Parameter

    No.ItemunitParameter
    1Rated VoltagekV12
    2Max. Working VoltagekV12
    3Rated FrequencyHz50
    4Rated CurrentA100
    5Rated Short-circuit Switch-off CurrentkA50
    61min Power Frequency Withstand voltage(value), to ground, interphase/isolation breakkA42/48
    7Lighting Impluse Resisting Voltage (peak) to ground, interphase/isolation breakkV75/85
    8Fuse Link Striking Output EnergyKg≈5
    Technical Parameter of load switch with fuse
    No.ItemUnitParameter
    1Rated VoltagekV12
    2Max. Working VoltagekV12
    3Rated FrequencyHz50
    4Rated CurrentA630
    5Rated Power load switch-off currentA630
    65% rated power load switch-off currentA31.5
    7Rated capacity switch-off currentA10
    8Rated inductance switch-off currentA40
    9Rated transfer currentkA1.3
    10Rated short-time withstand currentkA20
    11Rated peak withstand currentkA50
    12Mechanical endurancecycle2000
