    Indoor Electric Cabinet Distribution Low Voltage And Mv Switchgear

    Ask Lasest Price
    Brand Name : Tianan Electric
    Model Number : MNS
    Certification : CCC
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 units / year
    Delivery Time : 45 days
    Price : Pending
    • Product Details
    • Company Profile

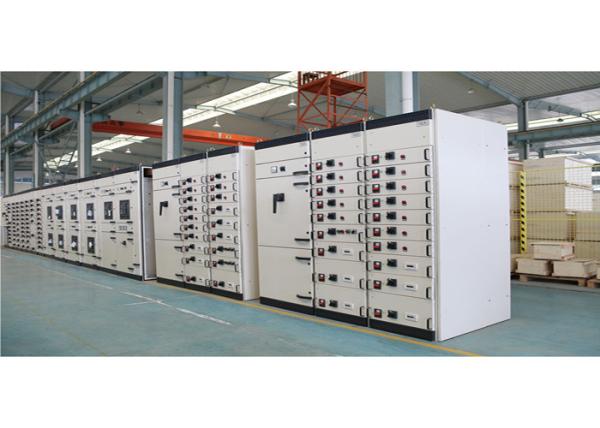

    Indoor Electric Cabinet Distribution Low Voltage And Mv Switchgear

    Indoor Electric Cabinet Distribution Low Voltage And Mv Switchgear

    Product Description:

    This product is suitable for power distribution systems of power plants, oil and chemical industry, metallurgy industry and high-rise buildings, especially in some places where requires for high automation and connection to computers such as larger power plants and petrochemical industry. It adapts to 3-phase system with frequency 50 (60) Hz, rated voltage 380V (400), (600), rated current 4000A (Max), and is used for low voltage distribution equipment of power supply system, motor control center and reactive power compensation.


    Features:

    a. The main structure is made of shaped steel of type 8MF with two mounting holes

    (m=20mm, 100mm, and diameter=9.2mm). On both sides. It is flexible and convenient to assemble.

    b. The function units are divided into three compartments: Function compartment, busbar compartment

    and cable compartment, each has independent function.

    c. The horizontal busbars are arranged in parallel at the back of cubicle to strength their resistance

    to electric power, which is the basic measure to make main circuit have high intensity of short circuit.

    d. The design of disconnected unit for cable makes it convenient for cable's use.


    Reference specification:

    Rated voltage of main circuit( V)400, 690
    Rated insulation voltage( V)690, 1000
    Rated frequency( Hz)50
    Rated insulation voltage( V)660( 1000)
    Rated current ( A)Horizontal busbar< =4000
    Vertical busbar1000
    Rated short time withstand current of busbar( kA/1s)80
    Rated peak withstand current of busbar( kA/0.1s)176
    Power frequency testing voltage (V/1min)Main circuit2500
    Auxiliary circuit1760
    Busbar3-phase and 4-wireA. B. C. PEN
    3-phase and 5-wireA. B. C. PE. N
    Protection degreeIP30. IP40
    Dimensions2200x (600 800 1000)x600(800 1000)

    Reference data for Breaker:

    TypeTANW1-2000TANW1-3200TANW1-4000TANW1-6300
    Frame rated current
    Inm(A)
    2000320040006300
    Rated current In(A)630,800,
    1000,1250,1600,2000
    2000,2500,2900,32003200,3600,
    4000
    4000,5000,
    6300
    Rated insulation voltage Ui(V)1000
    Rated operational voltage Ue(V)AC400,AC690
    Rated limit short circuit breaking capacity Icu(kA)AC400V80100100120
    AC690V50657585
    Rated running short circuit breaking capacity Ics(kA)AC400V506580100
    AC690V40656575
    Rated short time withstand current 1cw,1sAC400V506565/8085/100
    Rated impulse withstand current Uimp(V)8000
    Dielectric property(V)3000
