    Metal Clad Withdrawable Low Voltage Switchgear With Distribution Board Gck Series

    Ask Lasest Price
    Brand Name : Tianan Electric
    Model Number : GCK
    Certification : VDE CCC ISO9001:2000, IEC62271:200
    Price : Pending
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000 PCS/year
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

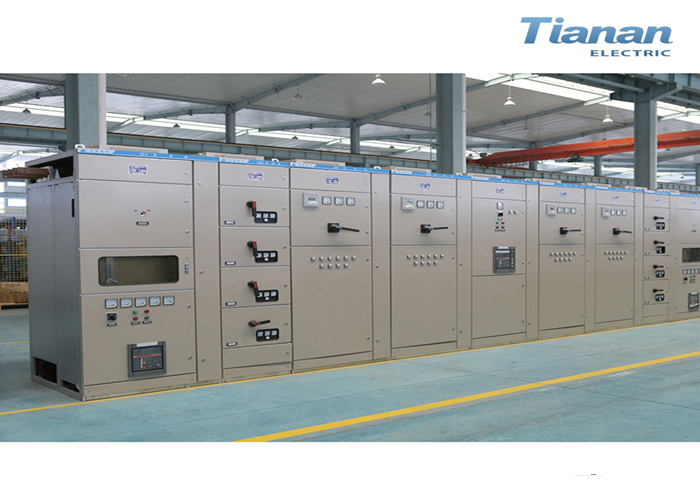

    Metal Clad Withdrawable Low Voltage Switchgear With Distribution Board Gck Series

    GCS/GCK Low Voltage Equipment Series Low Voltage Switchgear
    NINGBO TIANAN (GROUP) CO., LTD.

    General
    >> A system for all your applications requiring a high level of dependability:
    ~~ Electrical distribution and motor control.
    ~~ A modular structure.
    ~~ For low-voltage switchboards, designed to meet local standards, practices and requirements.
    A multi-function range
    >> Type D: Distribution switchboards up to 6300 A
    >> Type DC: Power factor correction column
    >> Type Mf: Fixed-type motor-control centres up to 6300 A
    >> Type Mw: Withdrawable-type motor-control centres up to 6300 A
    >> Type Ms: Variable-speed drives and starters column
    >> Type C: Cubicles up to 630 A.
    A modular system
    >> Standardized components.
    >> Fast manufacturing.
    >> Easy modifications.
    Functional design
    1) Rationalized dimensions and layout inside the switchboard.
    2) Reduced footprint.
    3) Easy power and auxiliary connections .
    4) Easy installation upgrading at a controlled cost.
    5) An intelligent system, ready to integrate devices containing advanced protection and communication
    functions for electrical distribution and motor control.
    Compliance to standards
    >> Compliance with international standards: IEC 60439-1 / VDE 0660 part 500.
    >> DIN 41-488 / BS 5486 / EN 60 439-1.
    >> Seismic withstand: Uniform Building code, California Building code.
    Electrical Characteristics
    >> Rated insulation voltage: 1000 VAC
    >> Rated operational voltage: 690 VAC
    >> Rated impulse withstand voltage: 12 KV
    >> Overvoltage category: IV
    >> Degree of pollution: 3
    >> Frequency: 400 Hz, up to 400 Hz
    Main busbars rated current
    1. Main busbars Single busbars Double busbars
    2. Rated current up to 4000 A up to 6300 A
    3. Rated peak withstand current 63, 105 187 kA 220 kA
    4. Rated short-time current 30, 50 85 kA r ms / 1 s 100 kA r ms / 1 s
    Surface Protection
    >> External surface protection Epoxy powder polymerized at high temperature.
    Standard colors
    >> RAL 9002 (grayish white) / RAL 7016 (graphite grey).

    Specifications

    Rated voltage of main circuit( V)AC 380( 400, 660)
    Rated voltage of auxiliary circuit( V)AC 220 380( 400)
    DC 110, 220
    Rated frequency( Hz)50( 60)
    Rated insulation voltage( V)660( 1000)
    Rated current ( A)Horizontal busbar< =4000
    Vertical busbar1000
    Rated short time withstand current of busbar( kA/1s)50, 80
    Rated peak withstand current of busbar( kA/0.1s)105, 176
    Power frequency testing voltage (V/1min)Main circuit2500
    Auxiliary circuit1760
    Busbar3-phase and 4-wireA. B. C. PEN
    3-phase and 5-wireA. B. C. PE. N
    Protection degreeIP3L0. IP4L0
    Dimensions2200x (600 800 1000)x600(800 1000)
