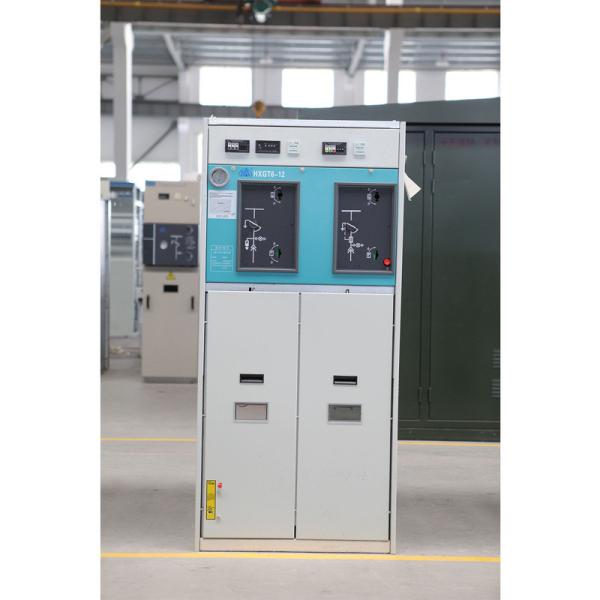

    HXGT Series GIS Gas Insulated Switchgear For Power Plant / Combined Substation

    Ask Lasest Price
    Brand Name : Tianan Electric
    Model Number : HXGT series
    Certification : CCC ISO9001:2000, IEC 60265-1, IEC 6227-1
    Price : Pending
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 PCS/year
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

    HXGT Series GIS Gas Insulated Switchgear For Power Plant / Combined Substation

    HXGT Series GIS Gas Insulated Switchgear For Power Plant / Combined Substation
    NINGBO TIANAN (GROUP) CO., LTD.

    General
    The GIS is suitable for power plant, substation, combined substation and electric power system, which is three phase indoor AC single busbar and sectioning single busbar with 50Hz, 35kV rated voltage, used to control, accept and distribute electric power.
    Available modules
    >> C: Cable Switch
    >> De: Direct Cable Connection with earthing
    >> D: Direct Cable Connection
    >> F: Switch-Fuse Disconnector
    >> V: Vacuum Circuit breaker
    >> Be: Busbar earthing
    >> Sl: Busbar Sectionalizer, load break switch
    >> Sv: Busbar Sectionalizer, vacuum circuit breaker
    >> CB: Circuit-breaker module
    >> M: Metering Module
    >> Mt: Metering tariff module
    Functional design
    1. Reliable

    Each compartment is monitored individually & has its own pressure relief device.
    2. Safety
    The primary side components are hermetically enclosed, gas filled compartment and thus insensitive
    to atmosphere, dirt &dust.
    3. Space saving
    Smaller foot prints All operations on the switchgear front.
    4. Economically efficient
    Reduced space & surface area requirement. Long service life Maintenance free Gas compartment.
    Specifications

    No.ItemunitParameter
    1Rated voltageKV12
    2Main busbar rated currentA630
    3Rated currentA630
    4Rated frequencyHZ50
    5Rated short-time withstand currentKA20
    6Rated short time continual timeS4
    7Rated peak withstand currentKA50/125
    8Rated short-circuit making currentKA50
    9Rated active load breaking currentA630
    10Rated closed loop breaking currentA630
    11Rated cable-charging breaking currentA10
    12The earthing switch rated
    short-time resistance current
    KA20
    13Grounding switch rated
    short circuit duration
    S4
    14Grounding switch rated
    peak withstand current
    KA50
    15Rating insulation level1min Power
    frequency withstand
    voltage
    KV(phase to phase/ phase-to-ground) 42;
    (isolating distance) 48
    lightning impulse
    withstand voltage
    (peak value)
    KV(phase to phase/ phase-to-ground) 75;
    (phase to phase/ phase-to-ground) 85
    16major loop resistance≤400
    17mechanical lifeLoad switchtime5000
    Earthing switchtime2000
    18subsidiary loop 1min Power
    frequency withstand voltage
    KV2
    19SF6 Rated Gas pressure
    (20ºC gauge pressure)
    Mpa0.04
    20SF6 Gas annual Leakage rate1%
    21Protection gradeIP4X
