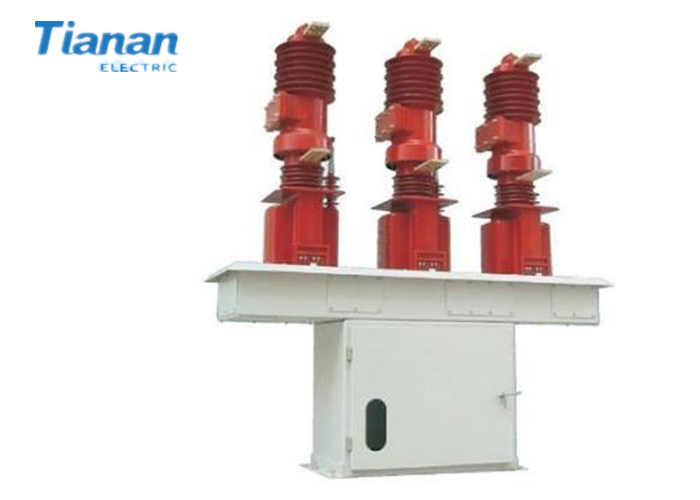

    Outdoor HV Porcelain Stanchion Type Vacuum Circuit Breaker Filled With SF6

    Ask Lasest Price
    Brand Name : Tianan Electric
    Model Number : ZW30-40.5/2000-31.5
    Certification : VDE ISO9001-2000 CE
    Price : Pending
    Payment Terms : L/C, D/A, D/P, T/T, MoneyGram, Western Union
    Supply Ability : 1000 PCS/year
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

    Outdoor HV Porcelain Stanchion Type Vacuum Circuit Breaker Filled With SF6

    Outdoor HV Porcelain Stanchion Type Vacuum Circuit Breaker Filled With SF6


    Overview

    ZW30-40.5/2000-31.5 outdoor HV vacuum circuit breaker (hereinafter referred to as ZW30-40.5) can be used in the power system with rated voltage 40.5KV, rated current 2000A and three - phase AC 50Hz to protect the equipment in the industrial and mineral enterprises, power plants and substations, which can be used as a connecting circuit breaker in the workplaces of frequent operation.
    This product complies with the standards of the GB1984-89 AC HV Circuit Breaker, IEC56 HV AC Circuit Breaker and JB3385-1996 3.6-40.5KV Indoor AC HV Vacuum Circuit Breakers.

    Parameters


    No.NameUnitValue
    1Rated voltagekV40.5
    2Rated insulation level1min power frequency withstand voltageDry Test (fracture, phase-to-phase, to earth)95*
    Wet test (to earth, external insulation)80*
    Lightning impulse withstand voltage (peak)185*
    3Rated currentA2000
    4Rated short circuit breaking currentkA31.5
    5Rated short-time making current(peak)80
    6Rated operating sequence0-0.3sCO**-180s-CO**
    7Rated out-of-phase breaking currentkA8
    8Rated single capacitor bank breaking currentA630
    9Rated duration of short circuits4
    10Rated short circuit breaking current breaking timesTime20
    11Arcing timems<20
    12Total breaking timems≤85
    13Mechanical endurance (CO)Time10000
    14Rated gas-charged pressureFilling with SF6 when TD-40.5W/2000-31.5(K)vacuum arc extinguishing chamber is usedMpa0.02(20℃)
    Filling with dry air or high purity nitrogen when TD-40.5W/2000-31.5(K)vacuum arc extinguishing chamber is used
    15Yearly gas leakage rate≤1
    16Vacuum degree of vacuum arcing chamberFresh-from-the factory arcing chamberPa≤1.33X10-3
    Storage period of 20 years< 6.6X10-2
